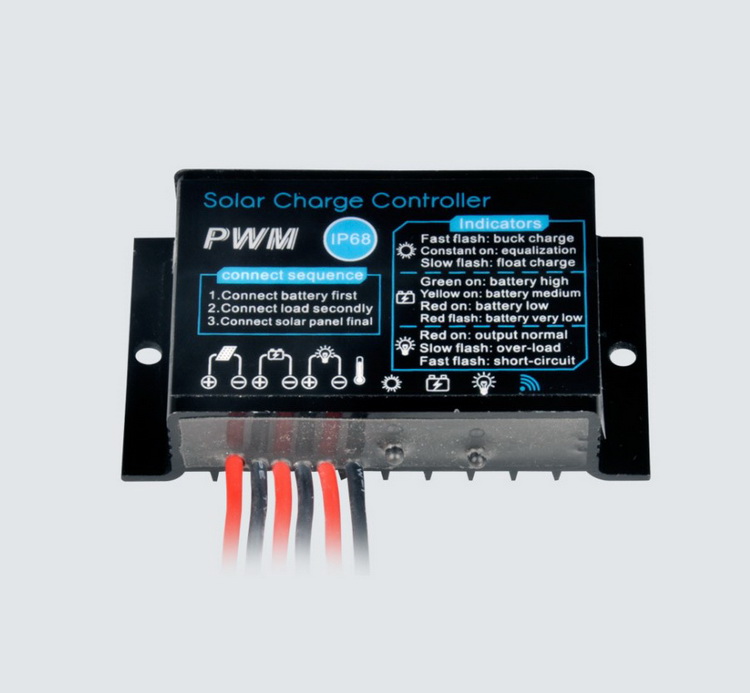

IP68 waterproof 5A 10A 15A 20A 12V 24V 48V Mini PWM Solar Charge Controller
BT-SSC005
- Description
IP68 waterproof 5A 10A 15A 20A 12V 24V 48V Mini PWM Solar Charge Controller
Specification:
System Voltage: 12V/24V
Rated charging current: 5A/10A/15A/20A
Rated discharging current: 5A/10A/15A/20A
System current protection: 25A
Overcurrent protection:<1.3 times rated current, maintaining 60S;<1.6 times rated current, maintaining 5S;>1.6 times rated current, Turn off the load immediately.
Standby loss: <5mA
Charging circuit voltage drop:≤0.26V
Discharge circuit voltage drop：≤0.15V
Battery over-voltage protection: 17V
Operating temperature: -35°C~+55°C
Boost impulse voltage: 14.8V
Dash voltage: 13.6V
Average voltage: 14.2V
Floating voltage: 13.8V
Charging recovery voltage:13.2V
Discharge cut-off voltage:11.2V
Discharge recovery voltage: 12.6V
Temperature compensation coefficient: No
Control method: PWM Pulse modulation technology
Maximum wiring diameter:12AWG
Size:182*45*20mm
