F260 Mirco DC Motor 3V-6V Mini DC Motor Technology Teaching Making
BT-SM002
- Description

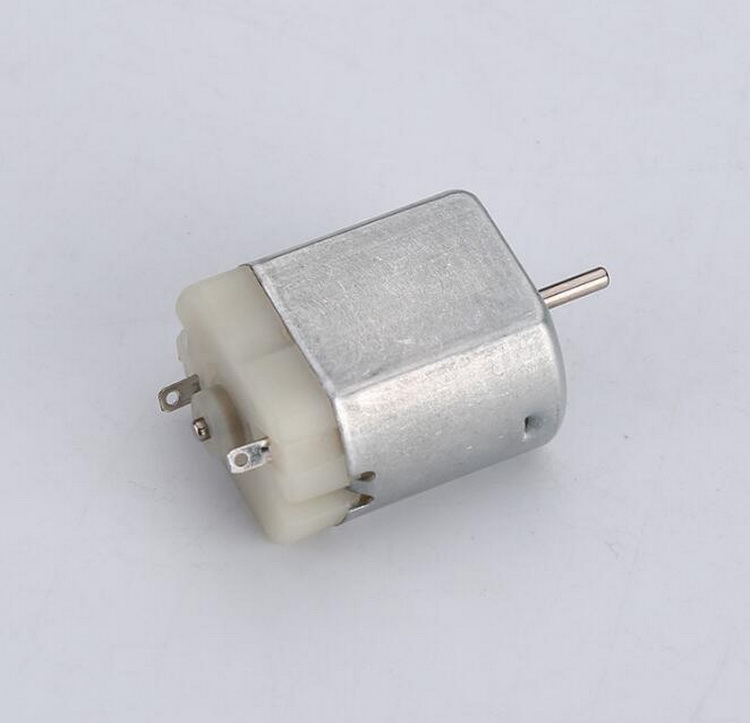

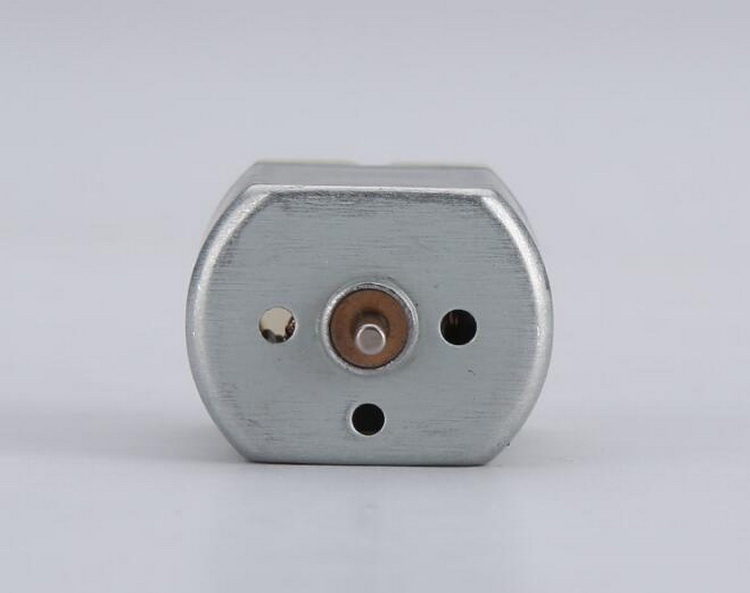

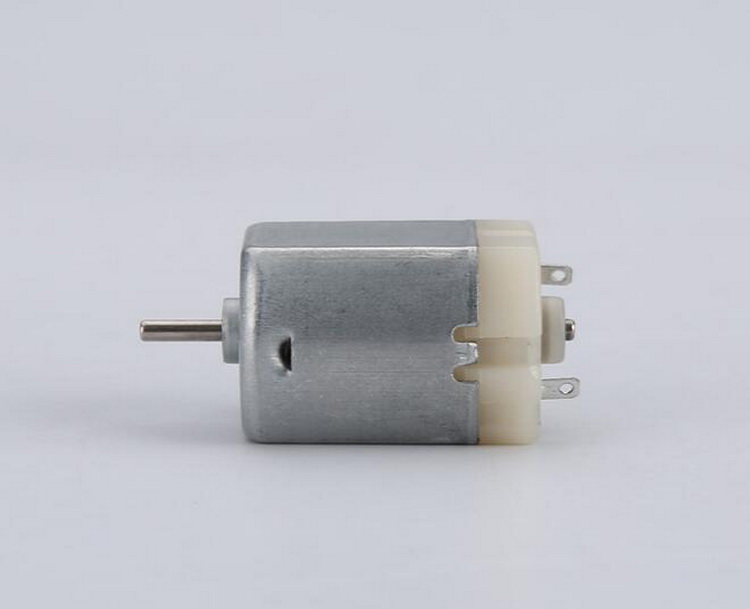

Flat 260 Mirco DC Motor 3V-6V Mini DC Motor Technology Teaching Making

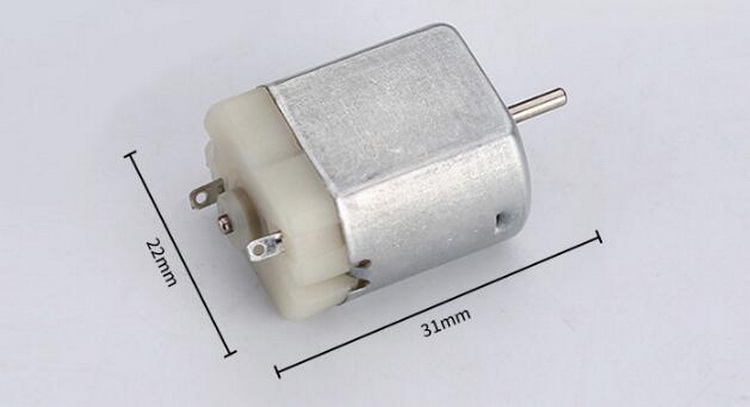

Body specifications: 22*31mm
Shaft length: about 10mm, can be customzied.
Shaft diameter: 1.5mm (D-axis)
Weight: 29g
Voltage range: DC 6-24 volts
Voltage: 6V
No-load current: 20mA
Stall current: 140mA
No-load speed: 2400 rpm
Voltage: 12V
No-load current: 20mA
Stall current: 300mA
No-load speed: 4900 rpm
Voltage: 24V
No-load current: 20mA
Stall current: 600mA
No-load speed: 10900 rpm
Body specifications: 22*31mm
Shaft length: about 10mm, can be customzied.
Shaft diameter: 1.5mm (D-axis)
Weight: 29g
Voltage range: DC 6-24 volts
Voltage: 6V
No-load current: 20mA
Stall current: 140mA
No-load speed: 2400 rpm
Voltage: 12V
No-load current: 20mA
Stall current: 300mA
No-load speed: 4900 rpm
Voltage: 24V
No-load current: 20mA
Stall current: 600mA
No-load speed: 10900 rpm
