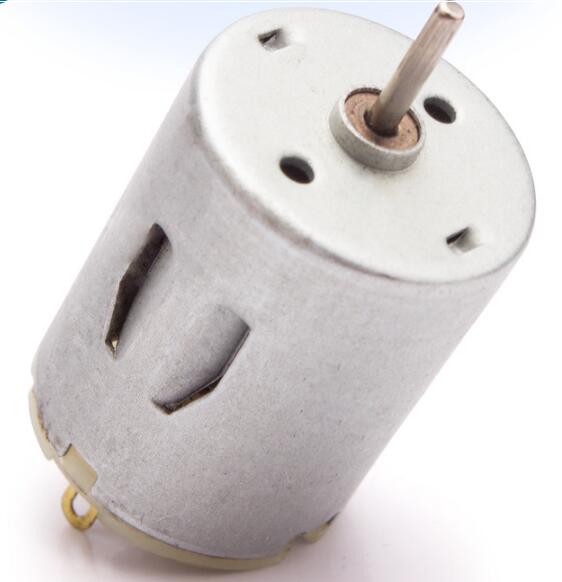

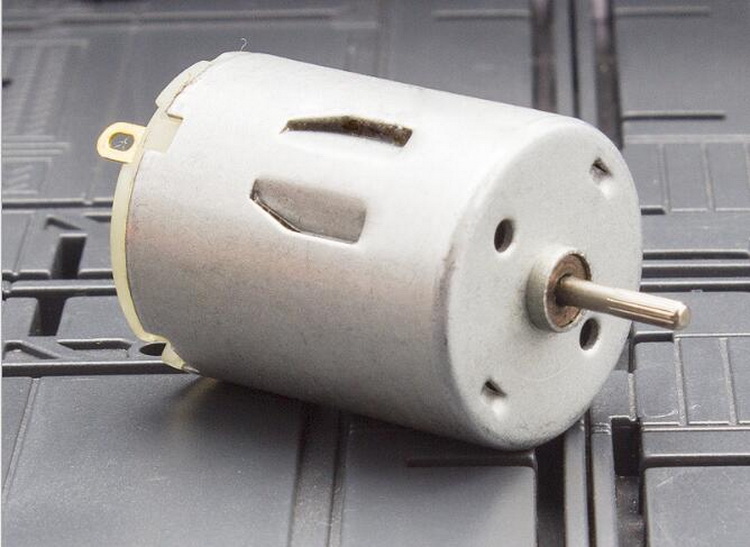

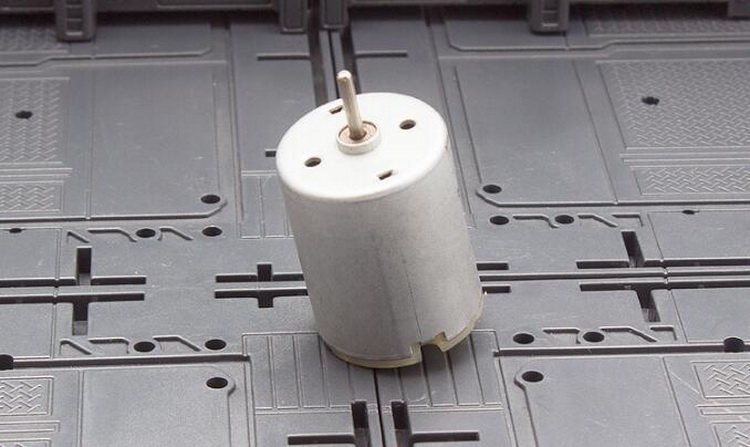

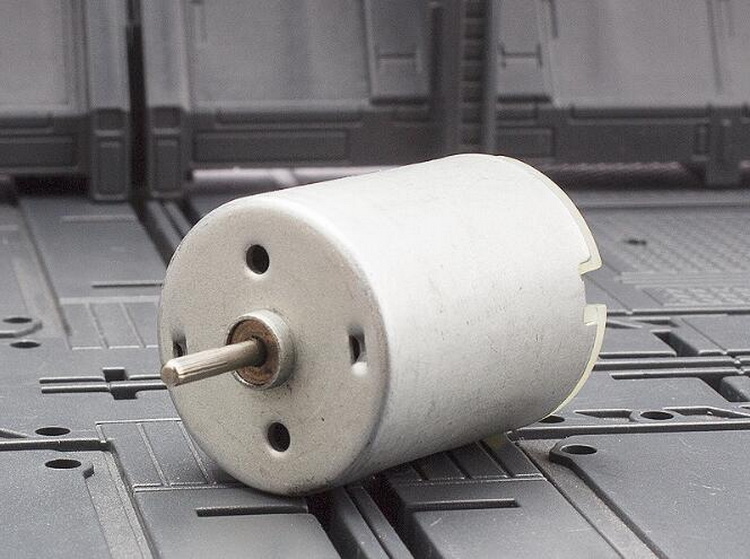

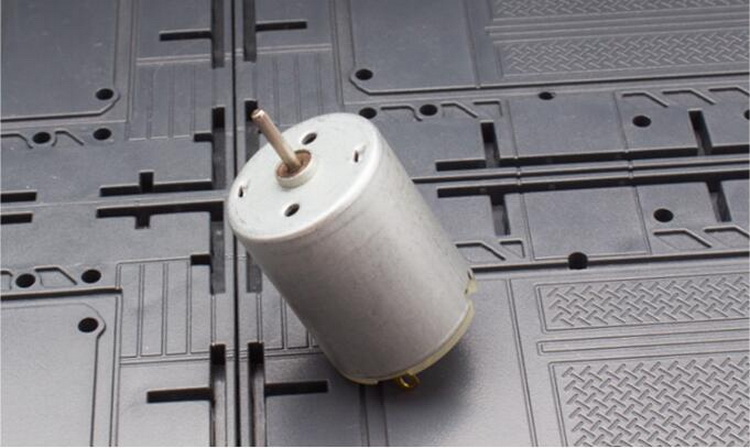

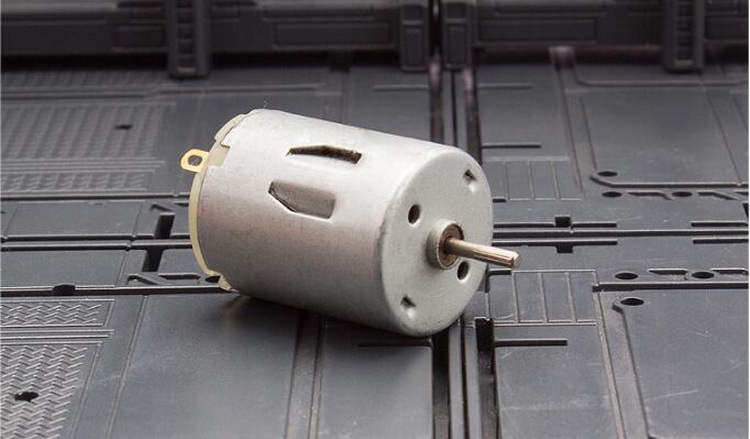

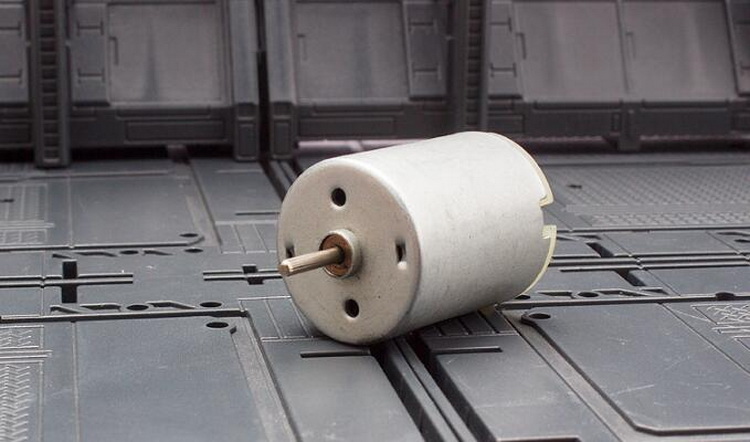

R280 DC Motor High Speed Strong Magnetic Toy Car
BT-SM004
- Description
Mini 280 DC Motor High Speed Strong Magnetic Toy Car DIY DC 3-12V 5000-15000RPM

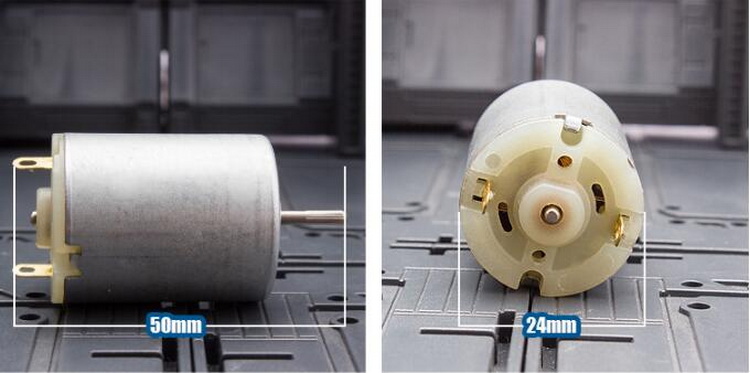

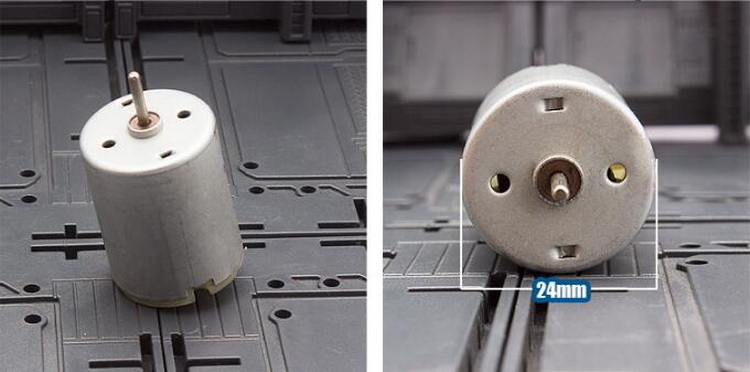

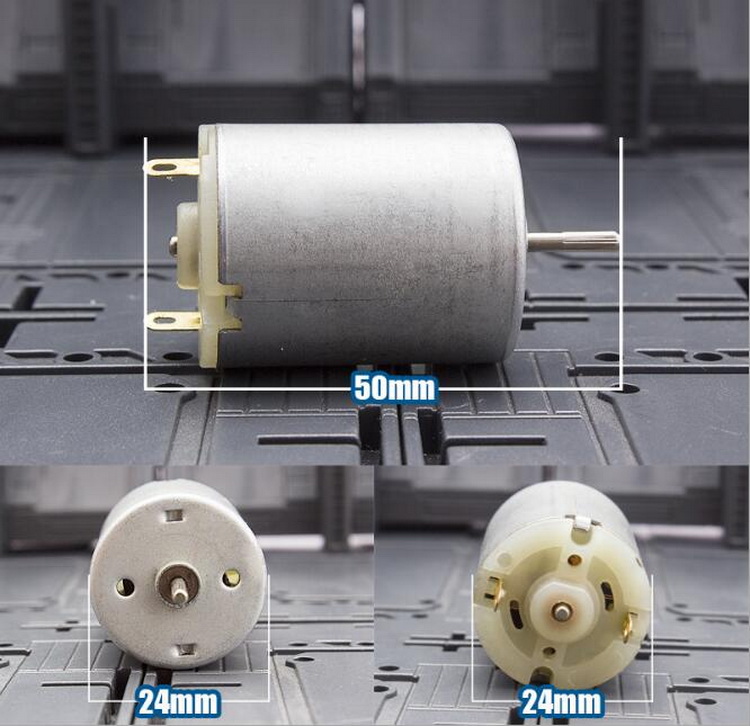

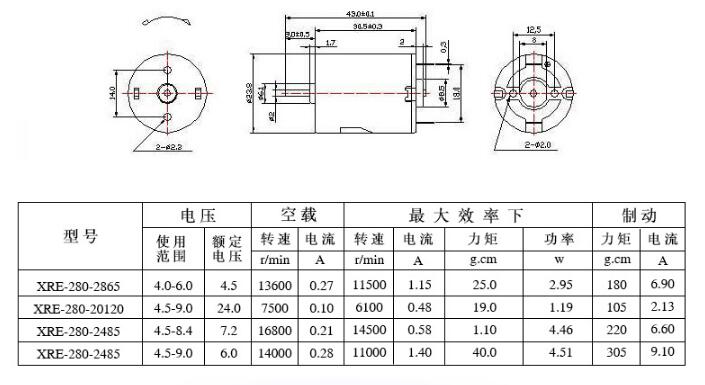

Motor shape: diameter 24*H30.5mm (without shaft length)Motor shaft diameter: 2mm
Output shaft length: about 10mm
Fixed aperture: 2.5mm
Fixed hole distance: about 13.5mm
Other features: self-contained capacitor
Voltage range: DC3-12V
3V: speed 1000 rpm, idling current 0.02A, blocking current 0.06A
6V: speed 2000 rpm, idling current 0.02A, locked current 0.1A
12V: 4300 rpm, idling current 0.02A, blocking current 0.22A
Suitable for: various model making
Self-contained capacitors at the tail for improved motor efficiency
