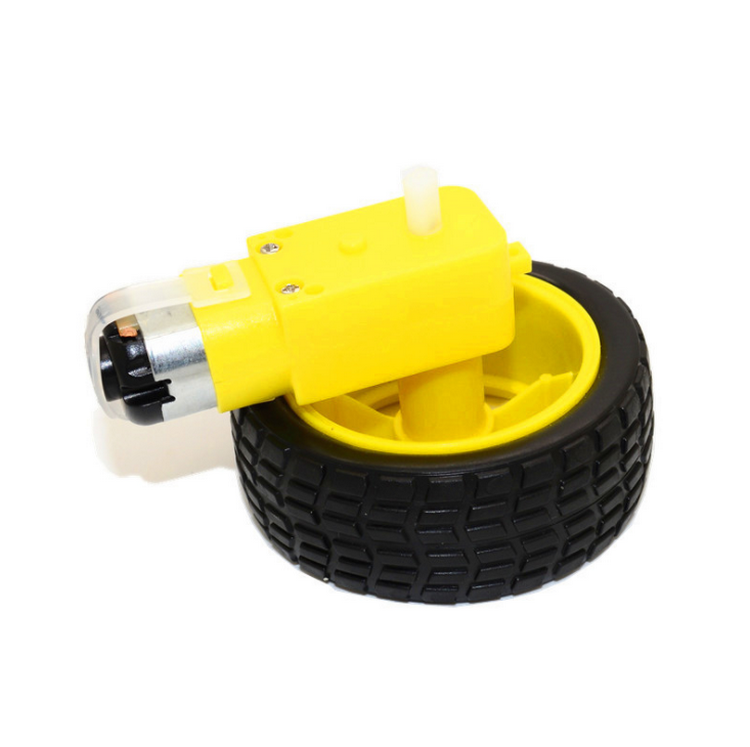

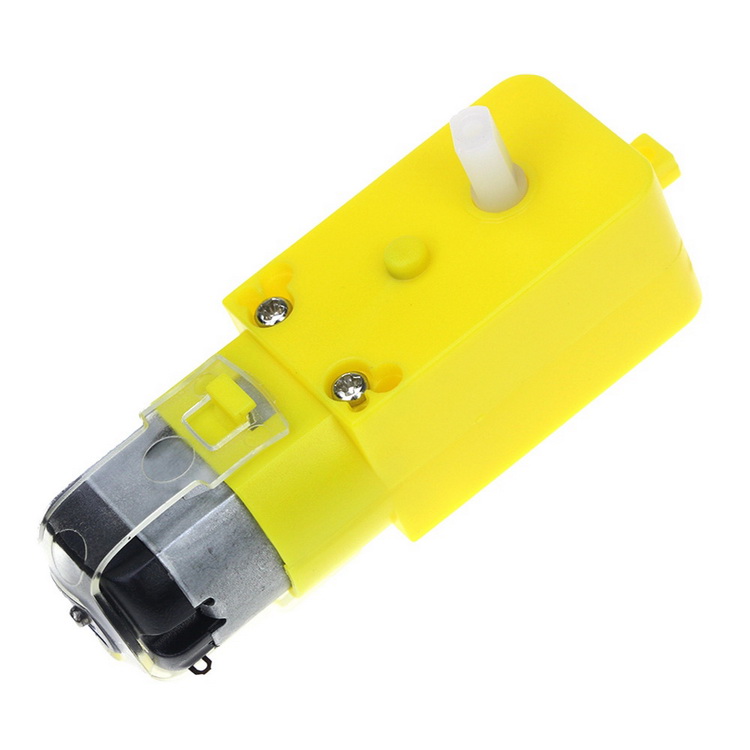

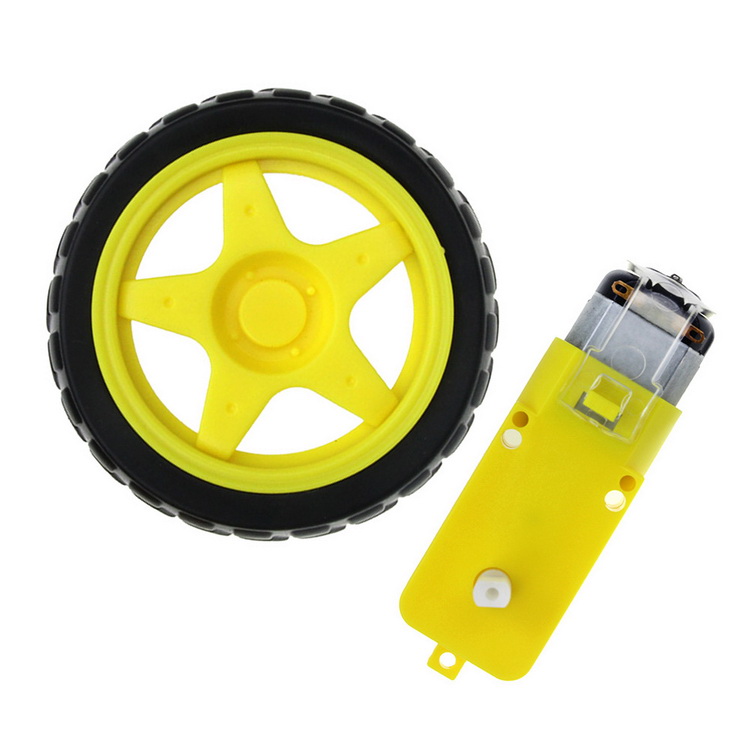

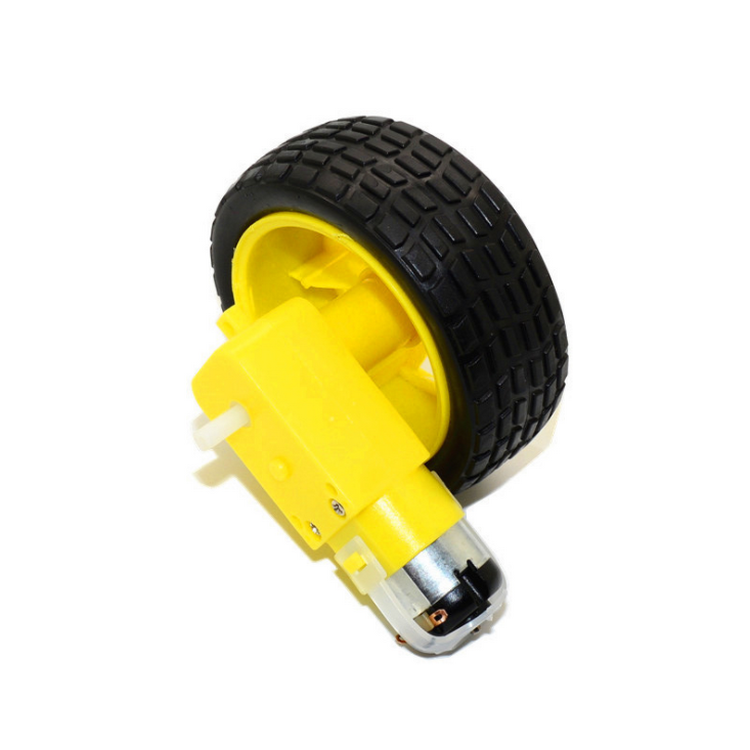

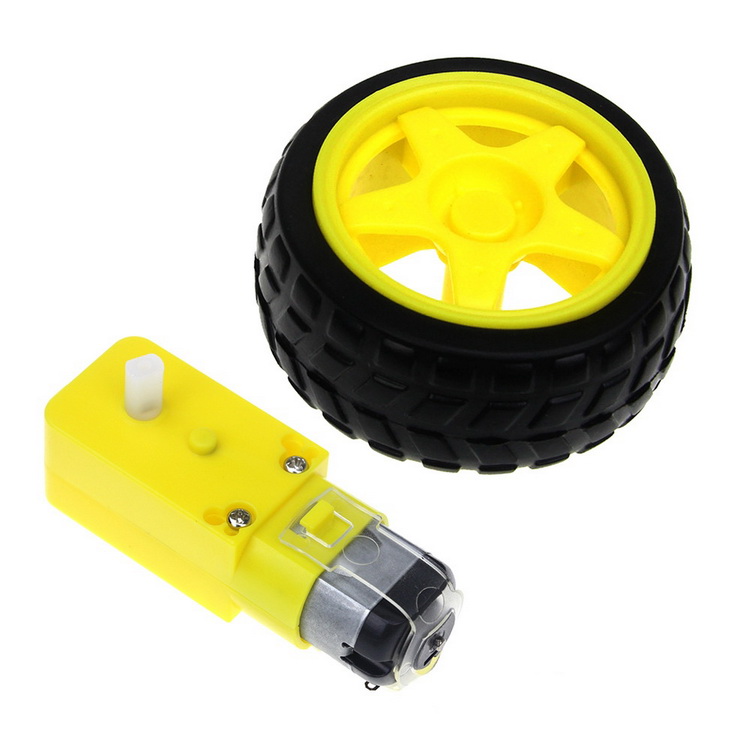

Robot tire + DC geared motor set
Robot tire + DC geared motor set
BT-SM012
  • Description

Smart Car Robot Gear Motor for arduino Diy Kit Wheels Smart Car Chassis Motor Robot Remote Control Car DC Gear Motor

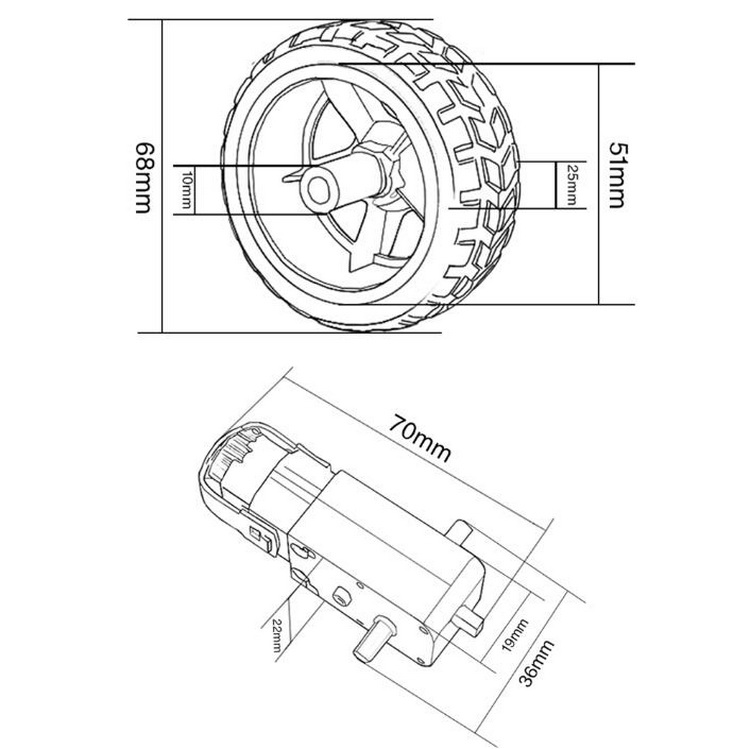

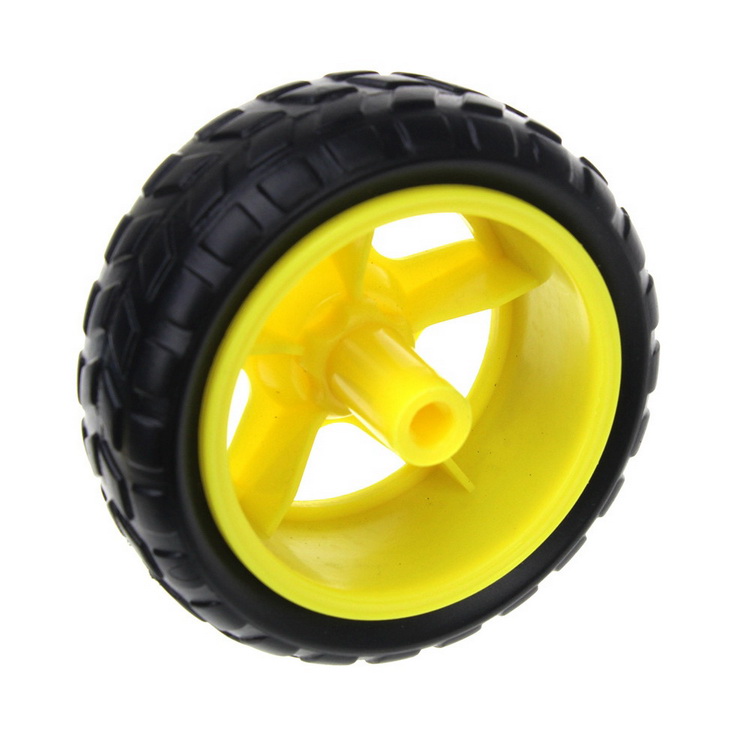

Wheels:
Center hole: 5.3MM x 3.66MM
Diameter: 66MM
Width: 2.66MM

Operating voltage: 3V to 6V DC (recommended operating voltage of about 6 to 8V)
Maximum torque: 800gf cm min (when it is 3V)
No-load speed: 1:48 (when it is 3V)
Load current: 70mA (250mA MAX) (when it is 3V)
This motor with EMC, anti-interference ability. SCM is a non-interference.
EMC contrast with the general Canadian EMC\'s current is too large, the impact of robot operation, the MCU does not often work.
Reduction ratio: 1:48
Torque: 0.8 KG/CM
Working voltage: 3-6v.
